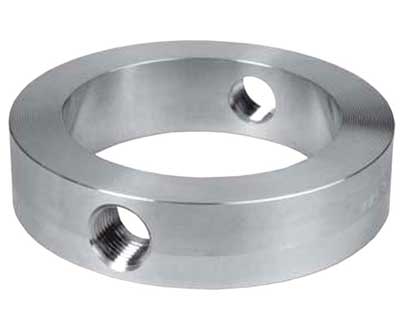

ANSI/ASME B16.5 Bleed Ring Standard Specification
| Dimensions | ASME B16.5 – ASME B16.20 – ASME 31.3 |
| Size | 1/2″ – 24″ AND 1 13/16” – 4 1/16” |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
ASME B16.5 Bleed Ring Material Specification
Stainless Steel Bleed Ring :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Bleed Ring :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Bleed Ring :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Bleed Ring : ASTM A350, LF2, LF3
Alloy Steel Bleed Ring :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Bleed Ring : ASTM SB61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Bleed Ring :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)

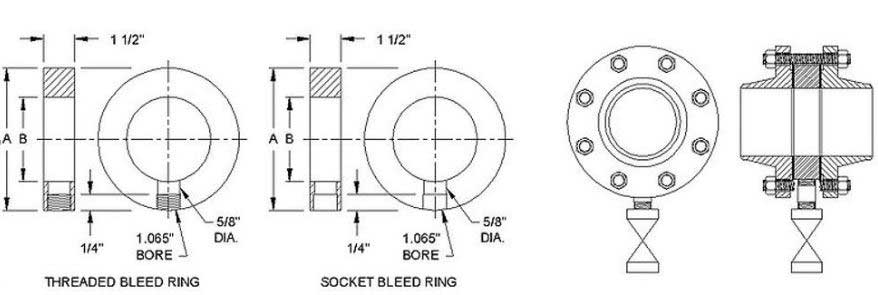

ANSI BLEED RING DIMENSIONS, BLEED RING SIZES
Class 150 Bleed Ring Dimensions, 4 Bleed Ring Weight
| Pipe Size (NPS) |
ASME-ANSI Class Dimension A (Outside Diameter – IN) |
B (Inside BORE-IN) | |||||
| 150 | 300 | 600 | 900 | 1500 | 2500 | ||
| 1/2 | – | – | – | – | – | – | – |
| 3/4 | – | – | – | – | – | – | – |
| 1 | 2 1/2 | 2 3/4 | 2 3/4 | 3 | 3 | 3 1/4 | 1 1/8 |
| 1 1/4 | 3 2 7/8 | 3 1/8 | 3 1/8 | 3 3/8 | – | – | 1 1/2 |
| 1 1/2 | 3 1/4 | 3 5/8 | 3 5/8 | 3 3/4 | 3 3/4 | 4 1/2 | 1 5/8 |
| 2 | 4 | 4 1/4 | 4 1/4 | 5 1/2 | 5 1/2 | 5 5/8 | 2 1/8 |
| 2 1/2 | 4 3/4 | 5 | 5 | 6 3/8 | – | 6 1/2 | 2 1/2 |
| 3 | 5 1/4 | 5 3/4 | 5 3/4 | 6 1/2 | 6 3/4 | 7 5/8 | 3 1/8 |
| 3 1/2 | 6 1/4 | 6 3/8 | 6 1/4 | – | – | – | 3 5/8 |
| 4 | 6 3/4 | 7 | 7 1/2 | 8 | 8 1/8 | 9 1/8 | 4 1/8 |
| 5 | 7 5/8 | 8 3/8 | 9 3/8 | 9 5/8 | 9 7/8 | 10 7/8 | 5 1/8 |
| 6 | 8 5/8 | 9 3/4 | 10 3/8 | 11 1/4 | 11 | 12 3/8 | 6 1/8 |
| 8 | 10 7/8 | 12 | 12 1/2 | 14 | 13 3/4 | 15 1/8 | 8 |
| 10 | 13 1/4 | 14 1/8 | 15 5/8 | 17 | 17 | 18 5/8 | 10 1/8 |
| 12 | 16 | 16 1/2 | 17 3/4 | 19 1/2 | 20 3/8 | 21 1/2 | 12 |
| 14 | 17 5/8 | 19 | 19 1/4 | 20 3/8 | 22 5/8 | – | 13 1/4 |
| 16 | 15 1/4 | 21 1/8 | 22 | 22 3/8 | 25 1/8 | – | 15 1/4 |
| 18 | 21 1/2 | 23 3/8 | 24 | 25 | 27 5/8 | – | 17 1/4 |
| 20 | 23 3/4 | 25 5/8 | 26 3/4 | 27 3/8 | 29 5/8 | – | 19 1/4 |
| 22 | – | – | – | – | – | – | – |
| 24 | 28 1/8 | 30 3/8 | 31 | 32 7/8 | 35 3/8 | – | 23 1/4 |

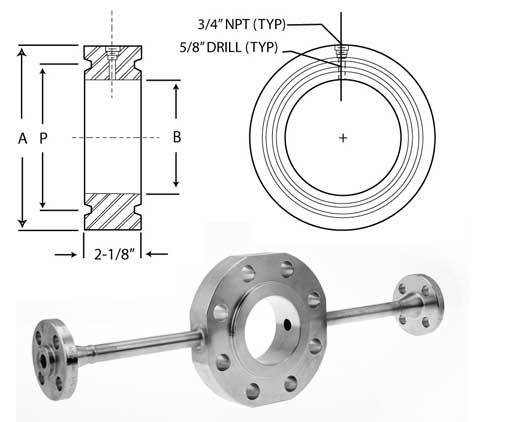

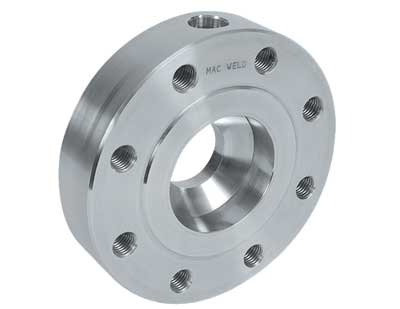

RTJ Bleed Ring Dimensions, RTJ Bleed Ring Weight
| Line Size | DIMENSIONAL DATA | |||||||||||
| 300# / 400# / 600# | 900# | 1500# | 2500# | |||||||||
| A | B | RING | A | B | RING | A | B | RING | A | B | RING | |
| 1″ | 2.750 | 1.320 | R-16 | 2.812 | 1.320 | R-16 | 2.812 | 1.320 | R-16 | 3.250 | 1.320 | R-18 |
| 1-1/2″ | 3.562 | 1.900 | R-20 | 3.625 | 1.900 | R-20 | 3.625 | 1.900 | R-20 | 4.500 | 1.900 | R-23 |
| 2″ | 4.250 | 2.375 | R-23 | 4.875 | 2.375 | R-24 | 4.875 | 2.375 | R-24 | 5.250 | 2.375 | R-26 |
| 2-1/2″ | 5.000 | 2.875 | R-26 | 5.375 | 2.875 | R-27 | 5.375 | 2.875 | R-27 | 5.875 | 2.875 | R-28 |
| 3″ | 5.750 | 3.500 | R-31 | 6.125 | 3.500 | R-31 | 6.625 | 3.500 | R-35 | 6.625 | 3.500 | R-32 |
| 4″ | 6.875 | 4.500 | R-37 | 7.125 | 4.500 | R-37 | 7.625 | 4.500 | R-39 | 8.000 | 4.500 | R-38 |
| 6″ | 9.500 | 6.625 | R-45 | 9.500 | 6.625 | R-45 | 9.750 | 6.625 | R-46 | 11.000 | 6.625 | R-47 |
| 8″ | 11.875 | 8.625 | R-49 | 12.125 | 8.625 | R-49 | 12.500 | 8.625 | R-50 | 13.375 | 8.625 | R-51 |
| 10″ | 14.000 | 10.750 | R-53 | 14.250 | 10.750 | R-53 | 14.625 | 10.750 | R-54 | 16.750 | 10.750 | R-55 |
| 12″ | 16.250 | 12.750 | R-57 | 16.500 | 12.750 | R-57 | 17.250 | 12.750 | R-58 | 19.500 | 12.750 | R-60 |

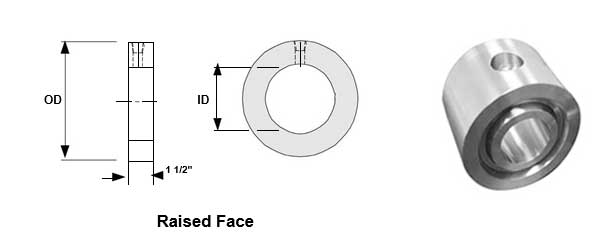

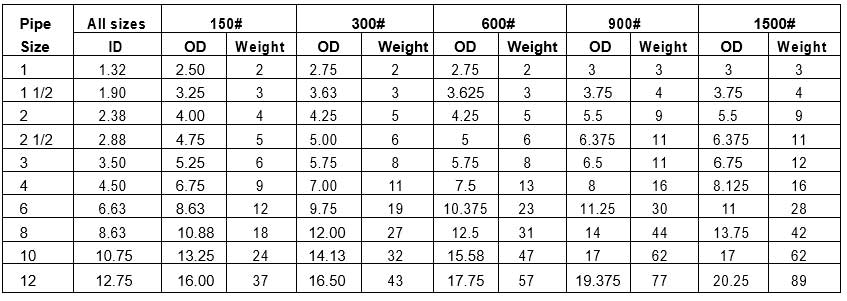

Raised Face Bleed Ring Dimensions
Types of Bleed Ring
| ANSI B16.5 Bleed Ring | ANSI B16.5 Class 150 Bleed Ring |
| 2 Bleed Rings | Pipe Bleed Ring |
| 4 Bleed Ring | Bleed Ring Dimensions |
| ASME B16.20 Drip Rings | 2 150# Bleed ring |
| Raised Face Bleed Ring Suppliers | Vent Rings |
| Bleed Ring Flat Face | Bleed Rings in ASME B31.3 |
| ANSI B16.20 class 150 Bleed Ring Stockholder | Raised Face Bleed Rings |
| Bleed Ring Class 150 | High Quality Bleed Ring |
| ASME B31.3 Bleed Rings | Steel Bleed Ring |
ANSI B16.5 Bleed Rings Application
ASME B16.20 Bleed Rings are known to deliver exceptional performance and are generally developed for meeting the demands. These Bleed Rings are used in various industries applications like :
- Raised Face Bleed Rings uses in Structural Pipe
- 4 Bleed Ring uses in Plumbing
- 2 150# Bleed Rings uses in Heating
- Stainless Steel Bleed Ring uses in Oil and Gas Pipeline
- RTJ Bleed Rings uses in Chemical Industry
- Steel Bleed Ring uses in Food Processing Industry
- Vent Rings uses in Fabrication Industry
- Drip Ring uses in Water Supply Systems
- ANSI B16.5 Bleed Ring uses in Power Plant
- Bleed Rings uses in Paper & Pulp Industry
- Drip Rings uses in General Purpose Applications
