Spectacle Blind Figure Manufacturers in India

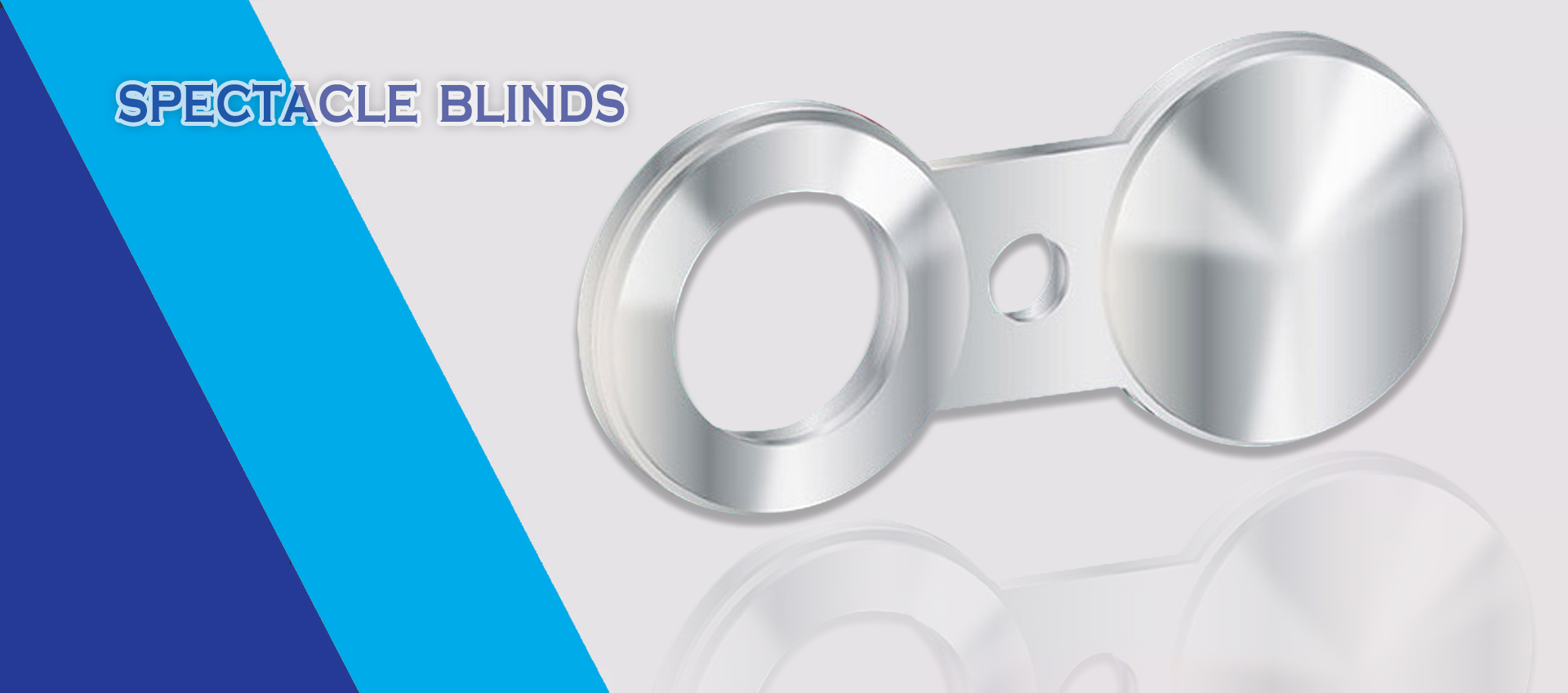

Spectacle Blind Manufacturers & Suppliers in India
Spectacle Blind Figure Manufacturers in India, Spectacle Blind Manufacturers, Suppliers in India, ANSI ENGINEERING is also supplier of Flat Face Spectacle Blind Flanges, manufactured at our facility to companies in various industries including power generation, petrochemical plants,pharmaceutical plants, shipbuilding, oil refineries, waste water treatment plants, paper mills and turnkey projects among others.Our Spectacle Blind Flange RF is widely exported to countries and regions. ANSI ENGINEERING is a highly acclaimed ASME/ANSI/DIN Spectacle Blind Figure Manufacturers in India. Call now for a sample!
JIS Spectacle Blind flange also used during operation wherever positive shutoff is required to prevent leakage of one fluid into another.ASME B16.48 Spectacle Blind Flanges are used to provide flexibility during maintenance an operation. ompanies manufacturing of Spectacle Blind Figure, Spectacle Blind manufacturers, suppliers, dealers, distributors, wholesalers, exporters and traders in India.
Spectacle Blind Flange ASME B16.48, Spectacle Blind Flange Flat Face, JIS Spectacle Blind Flange

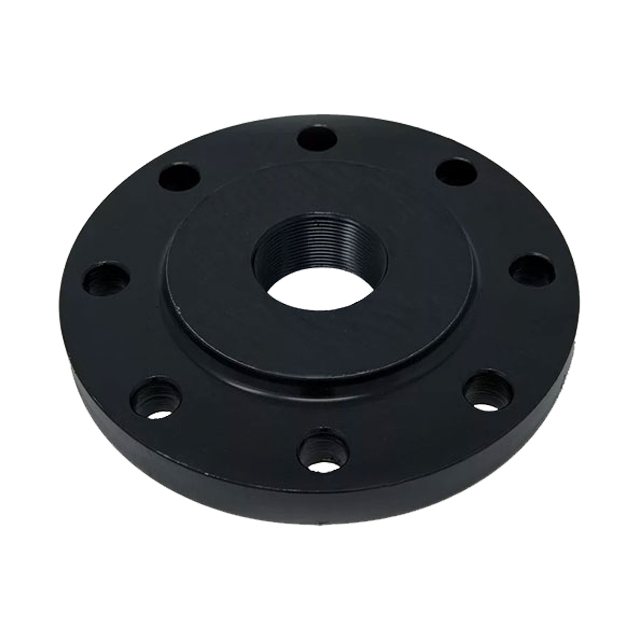

ASTM A350 LF2 Spectacle Flange

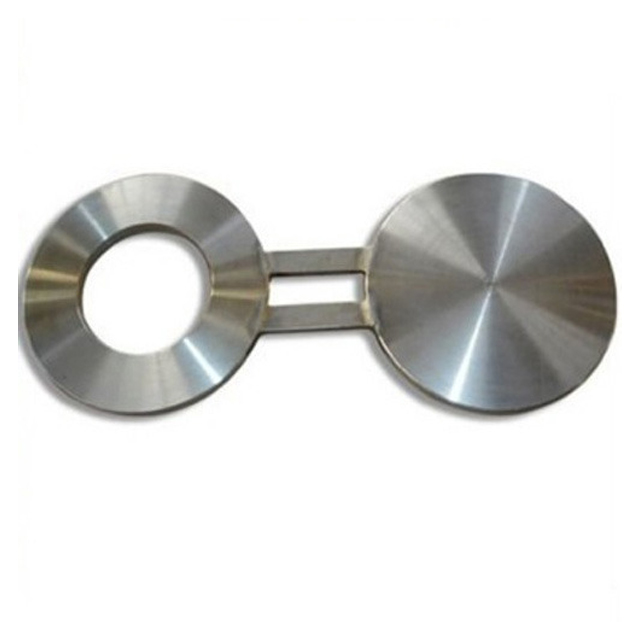

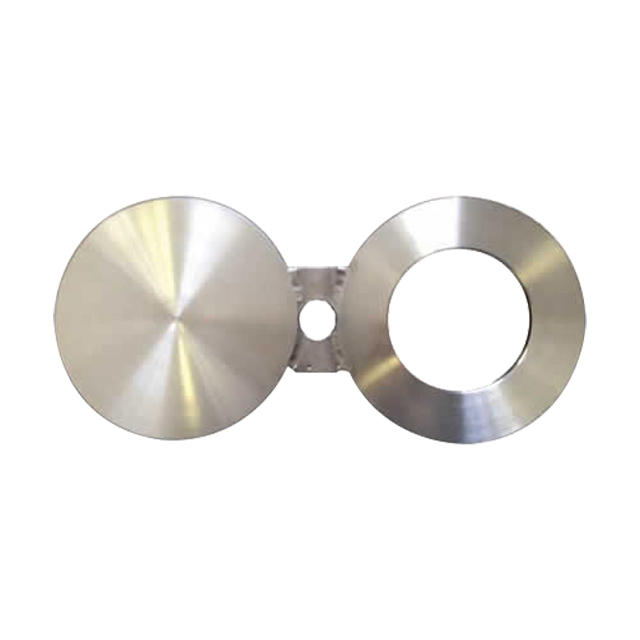

Stainless Steel Spectacle Blind Flange

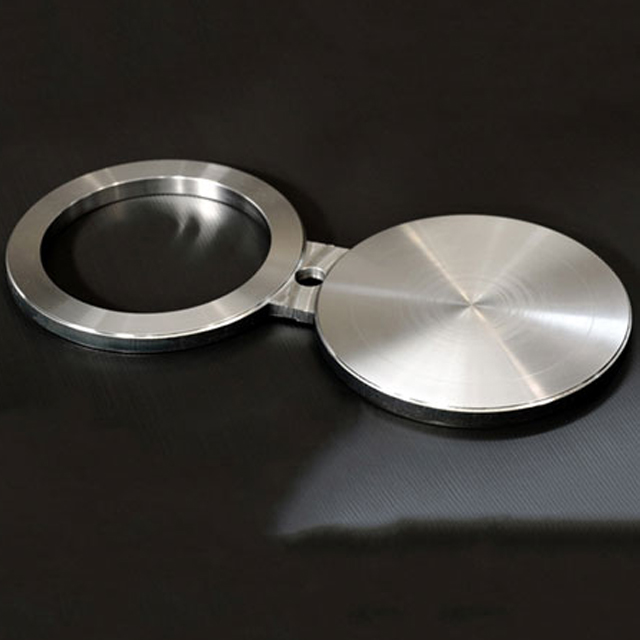

Carbon Steel Spectacle Blind Flange
What is ASME B16.48 Spectacle Blind Flange?
ASME B16.48 Spectacle blind, spades, and spacers which are also known as figure-8, paddle blank, Slip blind and spacer. Our offered Spectacle Blind Flange RF different components that used in piping for positive isolation of the section of a line or equipment during maintenance and shutdown. Bleed Ring Manufacturers in India
ANSI/ASME B16.48 Spectacle Blind Flange Specification
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| BS | BS4504 , BS4504, BS1560, BS10 |
| Coating/Surface Treatment | Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Value Added Services | CNC Machining, Customised Flanges |
ANSI B16.5 Spectacle Blind Flange Material Specification
Stainless Steel Spectacle Blind Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L
Duplex & Super Duplex Steel Spectacle Blind Pipe Flanges :
ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Carbon Steel Spectacle Blind Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706
Low Temperature Carbon Steel Spectacle Blind Flanges : ASTM A350, LF2, LF3
Alloy Steel Spectacle Blind Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Copper Alloy Steel Spectacle Blind Flanges : ASTM SB 61 , SB62 , SB151 , SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Nickel Alloy Spectacle Blind Pipe Flanges :
ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
We are one of the favorite suppliers in the below countries, check what and where we have supplied?

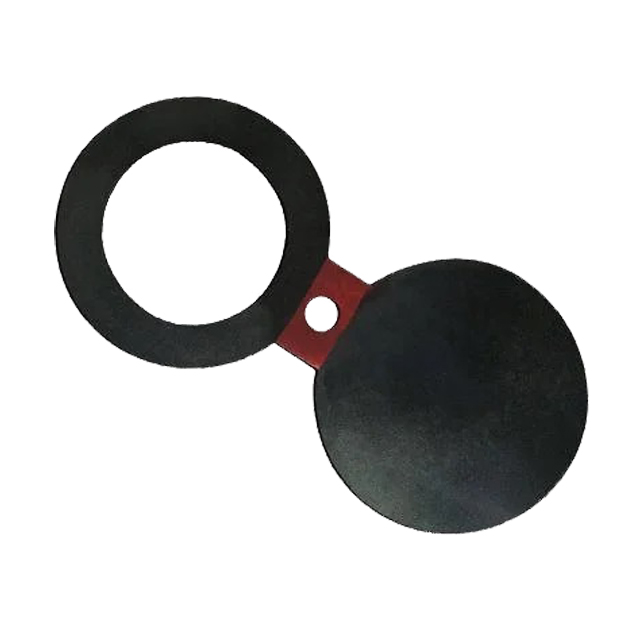

ASTM A105 Spectacle Blind Flange

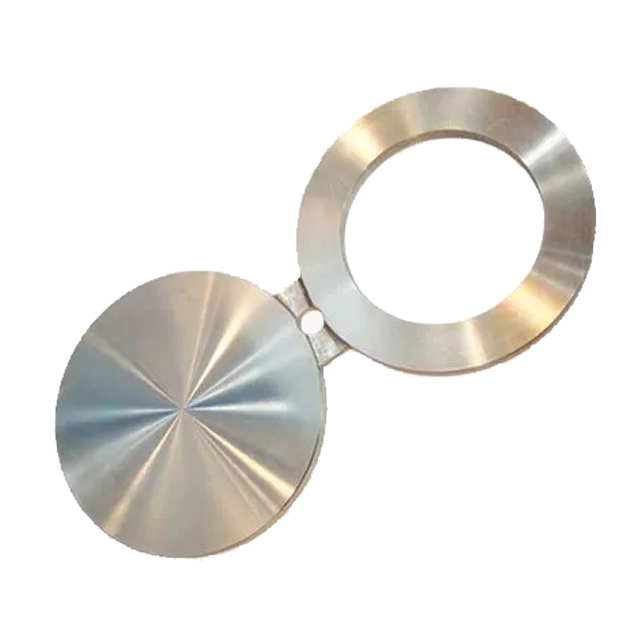

ASME B16.48 Spectacle Blind Flange
Pn16 Spectacle Blind Flange

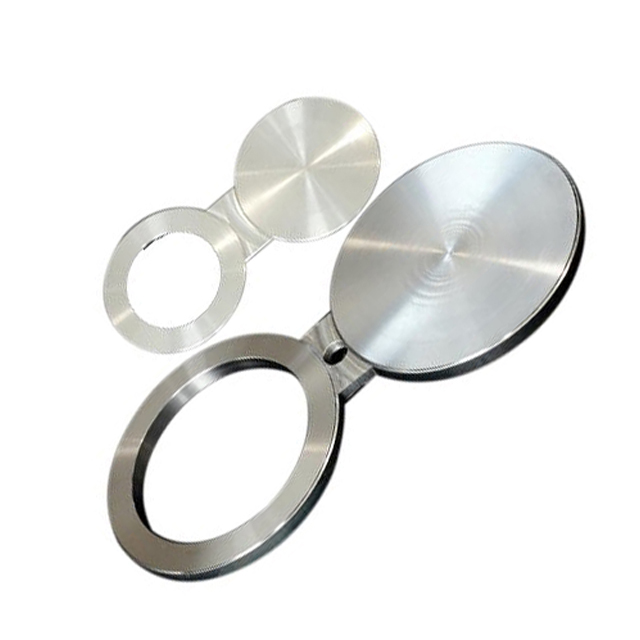

Stainless Steel 304 Spectacle Blind Flanges

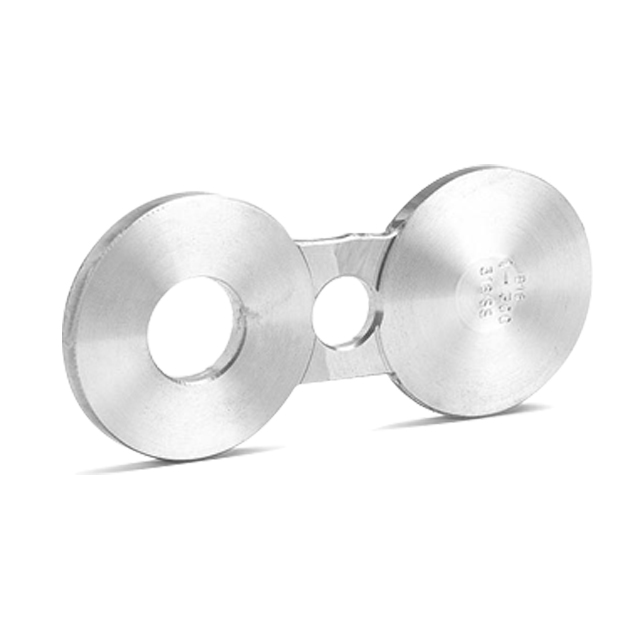

316 Stainless Steel Spectacle Blind Flange

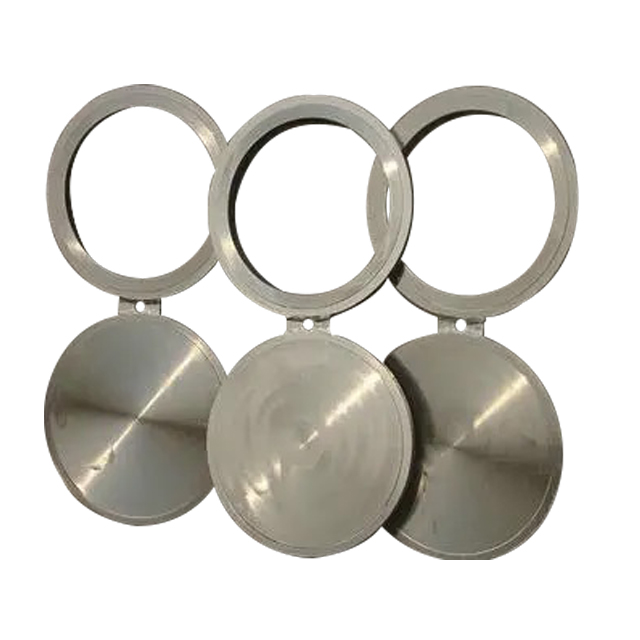

ASTM A182 F316 Spectacle Blind

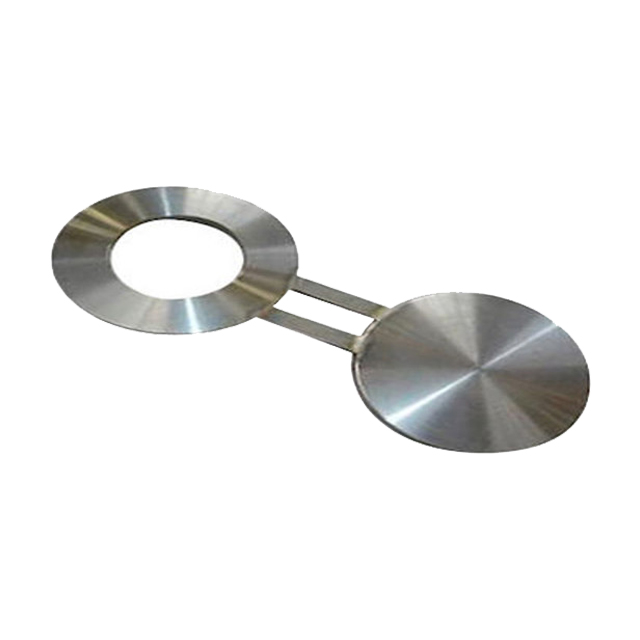

ASTM A182 F304 Spectacle Blinds

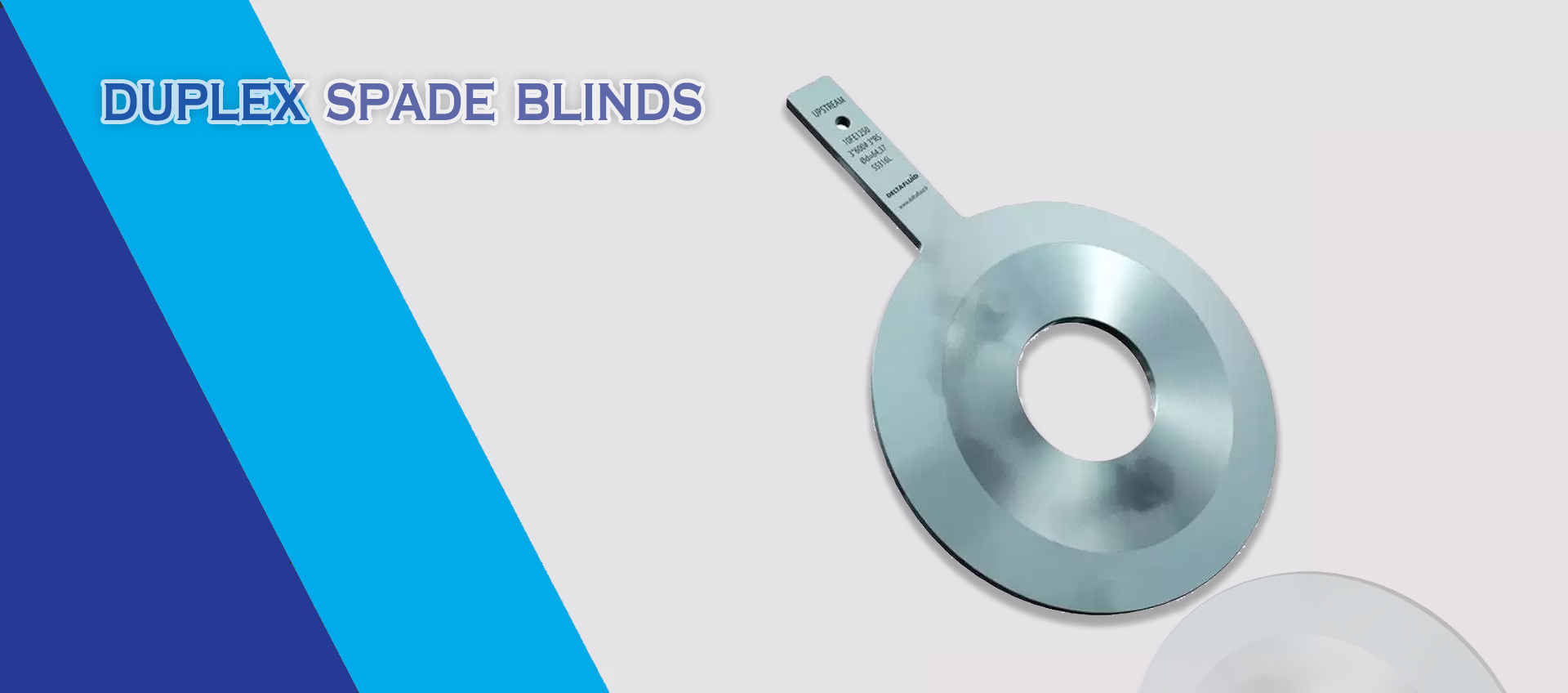

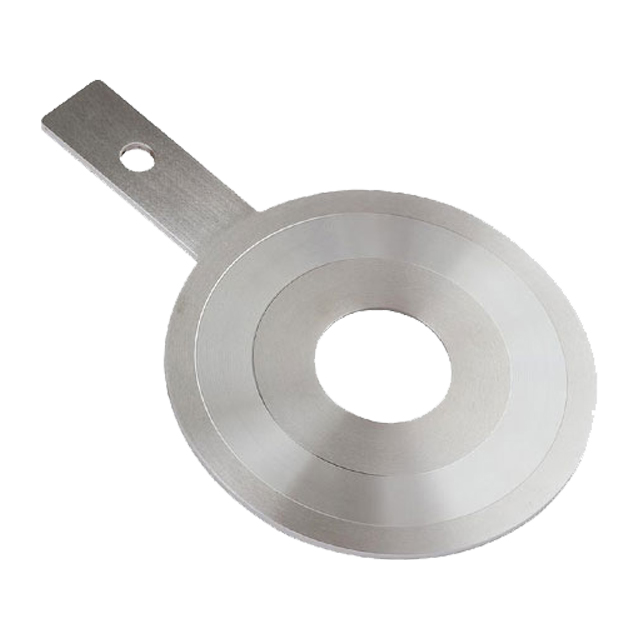

Duplex Spade Blinds

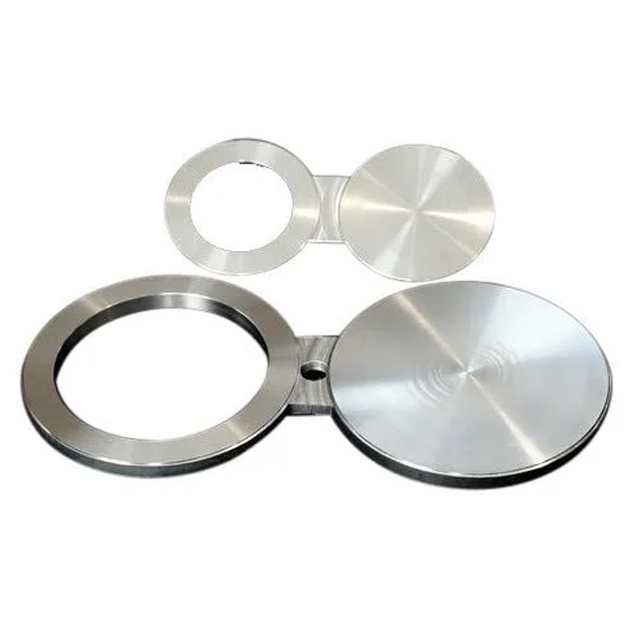

Stainless Steel Figure 8 Spectacle Blind

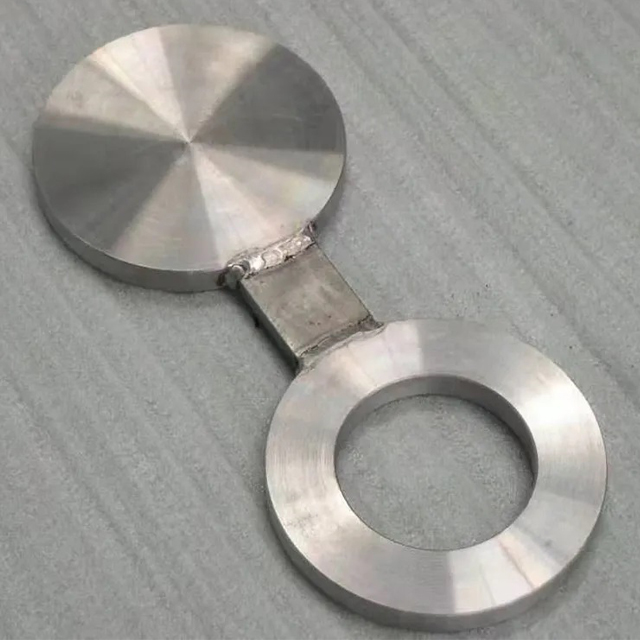

Mild Steel Spade Blind Flange

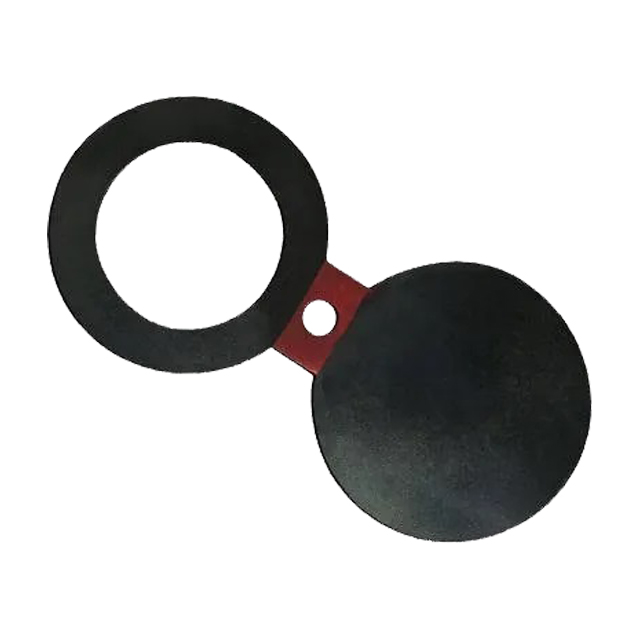

SA 105 Spectacle Blank

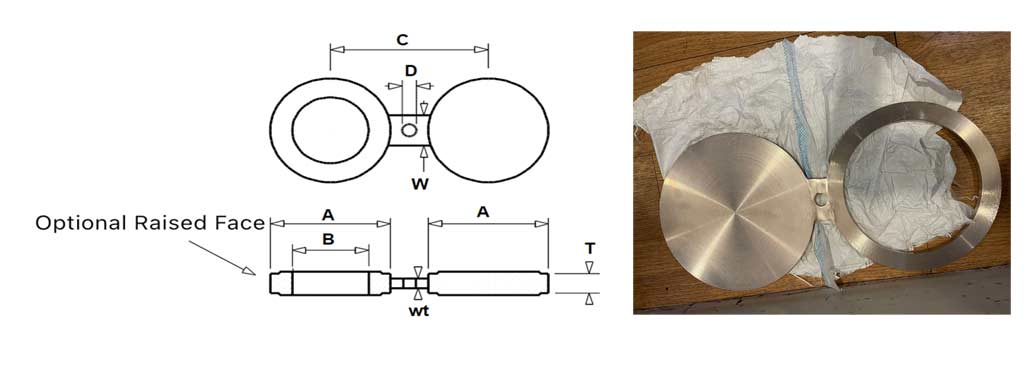

Class 150 Paddle Blind Flange Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 45 | 16 | 60 | 3 | 38 | 15.87 | 2 |
| 3/4" | 54 | 21 | 70 | 3 | 38 | 15.87 | 2 |
| 1" | 64 | 27 | 80 | 3 | 38 | 15.87 | 2 |
| 1.1/4" | 73 | 42 | 90 | 6.4 | 38 | 15.87 | 4 |
| 1.1/2" | 83 | 48 | 100 | 6.4 | 38 | 15.87 | 4 |
| 2" | 102 | 61 | 120 | 6.4 | 51 | 19.05 | 4 |
| 2.1/2" | 107 | 73 | 140 | 6.4 | 51 | 19.05 | 4 |
| 3" | 133 | 89 | 150 | 6.4 | 64 | 19.05 | 4 |
| 3.1/2" | 159 | 102 | 175 | 9.7 | 64 | 19.05 | 5 |
| 4" | 172 | 114 | 190 | 9.7 | 64 | 19.05 | 5 |
| 5" | 194 | 141 | 215 | 9.7 | 76 | 22.22 | 5 |
| 6" | 219 | 168 | 240 | 12.7 | 76 | 22.22 | 7 |
| 8" | 276 | 219 | 300 | 12.7 | 76 | 22.22 | 10 |
| 10" | 337 | 273 | 360 | 15.7 | 102 | 25.4 | 12 |
| 12" | 406 | 324 | 430 | 19.1 | 102 | 25.4 | 15 |
| 14" | 448 | 356 | 475 | 19.1 | 108 | 28.57 | 15 |
| 16" | 511 | 406 | 540 | 22.4 | 108 | 28.57 | 17 |
| 18" | 546 | 457 | 580 | 25.4 | 114 | 31.75 | 20 |
| 20" | 603 | 508 | 635 | 25.4 | 121 | 31.75 | 22 |
| 24" | 714 | 610 | 750 | 31.8 | 140 | 34.92 | 24 |
Class 300 Slip Blind Flange Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 51 | 16 | 65 | 6.4 | 38 | 15.87 | 4 |
| 3/4" | 64 | 21 | 80 | 6.4 | 38 | 19.05 | 4 |
| 1" | 70 | 27 | 90 | 6.4 | 38 | 19.05 | 4 |
| 1.1/4" | 79 | 42 | 100 | 6.4 | 38 | 19.05 | 4 |
| 1.1/2" | 92 | 48 | 115 | 6.4 | 38 | 22.22 | 4 |
| 2" | 108 | 61 | 125 | 9.7 | 51 | 19.05 | 5 |
| 2.1/2" | 127 | 73 | 150 | 9.7 | 51 | 22.22 | 5 |
| 3" | 146 | 89 | 170 | 9.7 | 64 | 22.22 | 5 |
| 3.1/2" | 162 | 102 | 185 | 12.7 | 64 | 22.22 | 7 |
| 4" | 178 | 114 | 200 | 12.7 | 64 | 22.22 | 4 |
| 5" | 213 | 141 | 235 | 15.7 | 76 | 22.22 | 8 |
| 6" | 248 | 168 | 270 | 15.7 | 76 | 22.22 | 8 |
| 8" | 305 | 219 | 330 | 22.4 | 76 | 25.4 | 17 |
| 10" | 359 | 273 | 385 | 25.4 | 102 | 28.57 | 20 |
| 12" | 419 | 324 | 450 | 28.4 | 102 | 31.75 | 22 |
| 14" | 483 | 356 | 515 | 31.8 | 108 | 31.75 | 24 |
| 16" | 536 | 406 | 570 | 38.1 | 108 | 34.92 | 29 |
| 18" | 594 | 457 | 630 | 41.1 | 114 | 34.92 | 31 |
| 20" | 651 | 508 | 685 | 44.5 | 121 | 34.92 | 34 |
| 24" | 772 | 610 | 810 | 50.8 | 140 | 41.27 | 39 |
Class 600 Spec Blind Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 51 | 16 | 65 | 6.4 | 38 | 15.87 | 4 |
| 3/4" | 64 | 21 | 80 | 6.4 | 38 | 19.05 | 4 |
| 1" | 70 | 27 | 90 | 6.4 | 57 | 19.05 | 4 |
| 1.1/4" | 79 | 37 | 100 | 9.7 | 57 | 19.05 | 5 |
| 1.1/2" | 92 | 43 | 115 | 9.7 | 67 | 22.22 | 5 |
| 2" | 108 | 55 | 125 | 9.7 | 57 | 19.05 | 5 |
| 2.1/2" | 127 | 67 | 150 | 12.7 | 67 | 22.22 | 7 |
| 3" | 146 | 83 | 170 | 12.7 | 67 | 22.22 | 7 |
| 3.1/2" | 159 | 96 | 185 | 15.7 | 76 | 25.4 | 8 |
| 4" | 191 | 108 | 215 | 15.7 | 76 | 25.4 | 8 |
| 5" | 238 | 135 | 265 | 19.1 | 86 | 28.57 | 10 |
| 6" | 264 | 162 | 290 | 22.4 | 86 | 28.57 | 12 |
| 8" | 318 | 212 | 350 | 28.4 | 95 | 31.75 | 22 |
| 10" | 397 | 265 | 430 | 35.1 | 105 | 34.92 | 27 |
| 12" | 454 | 315 | 490 | 41.1 | 105 | 34.98 | 31 |
| 14" | 489 | 346 | 525 | 44.5 | 114 | 38.1 | 34 |
| 16" | 562 | 397 | 605 | 50.8 | 124 | 41.25 | 39 |
| 18" | 610 | 448 | 655 | 53.8 | 133 | 44.45 | 41 |
| 20" | 679 | 497 | 725 | 63.5 | 133 | 44.45 | 48 |
| 24" | 787 | 597 | 840 | 73.2 | 152 | 50.8 | 55 |
Class 900 ASME 16.48 Spectacle Blind Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 60 | 16 | 80 | 6.4 | 38 | 22.22 | 4 |
| 3/4" | 67 | 21 | 90 | 6.4 | 41 | 22.22 | 4 |
| 1" | 76 | 27 | 100 | 6.4 | 57 | 25.4 | 4 |
| 1.1/4" | 86 | 37 | 110 | 9.7 | 57 | 25.4 | 5 |
| 1.1/2" | 95 | 43 | 125 | 9.7 | 67 | 28.57 | 5 |
| 2" | 140 | 55 | 165 | 12.7 | 57 | 25.4 | 7 |
| 2.1/2" | 162 | 67 | 190 | 12.7 | 67 | 28.57 | 7 |
| 3" | 165 | 83 | 190 | 15.7 | 67 | 25.4 | 8 |
| 4" | 203 | 108 | 235 | 19.1 | 76 | 31.75 | 10 |
| 5" | 244 | 135 | 280 | 22.4 | 86 | 34.92 | 12 |
| 6" | 286 | 162 | 320 | 25.4 | 86 | 31.75 | 13 |
| 8" | 356 | 212 | 395 | 35.1 | 95 | 38.1 | 27 |
| 10" | 432 | 265 | 470 | 41.1 | 105 | 38.1 | 31 |
| 12" | 495 | 315 | 535 | 47.8 | 105 | 38.1 | 36 |
| 14" | 518 | 346 | 560 | 53.8 | 114 | 41.27 | 41 |
| 16" | 572 | 397 | 615 | 60.5 | 124 | 44.45 | 46 |
| 18" | 635 | 448 | 685 | 66.5 | 133 | 50.8 | 50 |
| 20" | 696 | 497 | 750 | 73.2 | 133 | 53.97 | 55 |
| 24" | 835 | 597 | 900 | 88.9 | 152 | 66.67 | 67 |
Class 1500 Spectacle Blind Weight Chart
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 61 | 16 | 80 | 6.4 | 38 | 22.22 | 4 |
| 3/4" | 67 | 21 | 90 | 6.4 | 41 | 22.22 | 4 |
| 1" | 76 | 27 | 100 | 6.4 | 57 | 25.4 | 4 |
| 1.1/4" | 86 | 37 | 110 | 9.7 | 57 | 25.4 | 5 |
| 1.1/2" | 95 | 43 | 125 | 9.7 | 67 | 28.57 | 5 |
| 2" | 140 | 55 | 165 | 12.7 | 57 | 25.4 | 7 |
| 2.1/2" | 162 | 67 | 190 | 12.7 | 67 | 28.57 | 7 |
| 3" | 165 | 83 | 190 | 15.7 | 67 | 25.4 | 8 |
| 4" | 203 | 108 | 235 | 19.1 | 76 | 31.75 | 10 |
| 5" | 244 | 135 | 280 | 22.4 | 86 | 34.92 | 12 |
| 6" | 286 | 162 | 320 | 25.4 | 86 | 31.75 | 13 |
| 8" | 356 | 212 | 395 | 35.1 | 95 | 38.1 | 27 |
| 10" | 432 | 265 | 470 | 41.1 | 105 | 38.1 | 31 |
| 12" | 495 | 315 | 535 | 47.8 | 105 | 38.1 | 36 |
| 14" | 518 | 346 | 560 | 53.8 | 114 | 41.27 | 41 |
| 16" | 572 | 397 | 615 | 60.5 | 124 | 44.45 | 46 |
| 18" | 635 | 448 | 685 | 66.5 | 133 | 50.8 | 50 |
| 20" | 696 | 497 | 750 | 73.2 | 133 | 53.97 | 55 |
| 24" | 835 | 597 | 900 | 88.9 | 152 | 66.67 | 67 |
Class 2500 Spectacle Blind Flange Dimensions
| NPS |
OUTSIDE Ø | INSIDE Ø | CENTER LINE | THK | WEB WIDTH | HOLE DIA | WEB THK |
|---|---|---|---|---|---|---|---|
| A | B | C | T | W | D | wt | |
| 1/2" | 67 | 16 | 90 | 9.7 | 38 | 22.22 | 5 |
| 3/4" | 73 | 21 | 95 | 9.7 | 41 | 22.22 | 5 |
| 1" | 83 | 27 | 110 | 9.7 | 64 | 25.4 | 5 |
| 1.1/4" | 102 | 35 | 130 | 12.7 | 64 | 28.57 | 7 |
| 1.1/2" | 114 | 41 | 145 | 15.7 | 70 | 31.75 | 8 |
| 2" | 143 | 53 | 170 | 15.7 | 70 | 28.57 | 8 |
| 2.1/2" | 165 | 63 | 195 | 19.1 | 76 | 31.75 | 10 |
| 3" | 194 | 78 | 230 | 22.4 | 76 | 34.92 | 12 |
| 4" | 232 | 102 | 275 | 28.4 | 89 | 41.27 | 22 |
| 5" | 276 | 128 | 325 | 35.1 | 89 | 47.62 | 27 |
| 6" | 314 | 154 | 370 | 41.1 | 89 | 53.97 | 31 |
| 8" | 384 | 198 | 440 | 53.8 | 102 | 53.97 | 41 |
| 10" | 473 | 248 | 540 | 66.5 | 114 | 66.67 | 50 |
| 12" | 546 | 289 | 620 | 79.2 | 114 | 73.02 | 60 |
NOTE: raised face line blanks shall be in accordance with ASME B16.5. A raised face may be specified at the option of the purchaser.
JIS Spectacle Blind Flange Dimensions
| Nominal Size | Outside diameter of flange | Diameter of bolt hole centre circle | Diamter of bolt hole | Number of bolt | Nominal desig-nation of thread of bolt |
Inside diameter | Inside diameter | Depth of socket | Thickness of Flange | Diameter of hub Small diameter side | Diameter of hub Large diamter side | Totle length of flange | Radius of fillet |
| A | D | C | h | d0 | d(18) | S | t | a | b | T | r | ||
| 10 15 20 |
90 95 100 |
65 70 75 |
15 15 15 |
4 4 4 |
M12 M12 M12 |
17.8 22.2 27.7 |
12.7 16.1 21.6 |
10 10 13 |
12 12 14 |
23 27 33 |
26 30 36 |
16 16 20 |
4 4 4 |
| 25 32 40 |
125 135 140 |
90 100 105 |
19 19 19 |
4 4 4 |
M16 M16 M16 |
34.5 43.2 49.1 |
27.6 35.7 41.6 |
13 13 13 |
14 16 16 |
41 50 56 |
44 53 60 |
20 22 24 |
4 4 4 |
| 50 65 80 |
155 175 185 |
120 140 150 |
19 19 19 |
4 4 8 |
M16 M16 M16 |
61.1 77.1 90.0 |
52.9 67.9 80.7 |
16 16 16 |
16 18 18 |
69 86 99 |
73 91 105 |
24 27 30 |
4 4 4 |
Spectacle Blind Flange Pressure Ratings
| Flanges pressure rating in psig for Spectacle Blind Flange ASME |
|||||||
| Temperature (F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
Types of Spectacle Blind Flanges
| Spectacle Blind Flange | Raised Face Spectacle Blind Flanges |
| ANSI B16.48 Spectacle Blind Flanges | Spectacle Blind Flange Dimensions |
| ASME B16.5 Spectacle Blind Flanges | ANSI B16.5 Class 150 Spectacle Blind Flanges |
| Flat Face Spectacle Blind Flanges | DIN Spectacle Blind Flange |
| Spectacle Blind Plate Flanges | ASME B16.47 Series A and B Spectacle Blind Flanges |
| ANSI B16.5 class 150 Spectacle Blind Flange | ANSI 150 Spectacle Blind Flange |
| Carbon Steel Spectacle Blind Flange | High Quality Spectacle Blind Flanges |
| Spectacle Blind Flange RF | JIS Spectacle Blind Flange |
| ASME B16.48 Spectacle Blind Flanges | Spectacle Blind Flanges Flat Face |
Request for a Quote
Fill out the below form and our experts will touch with you with in 24 hours.
Delivering Results with Solid Dependability
2024 All Copyrights Reserved by ANSI ENGINEERING | Design by City Business Group
