Complete Solution for your Construction Projects
PRODUCTS

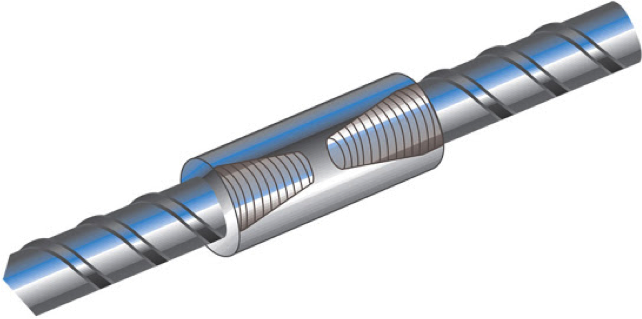

Rebar Taper Coupler
Rebar Reducer Coupler
Rebar Terminator
What Set Us Apart?
Business it will frequently occur that pleasures have to be repudiated and annoyances accepted. The wise man therefore always holds in these matters.
Complete Solution for your Construction Projects
- High joint strength
- Quick connecting
- Wide application scope
- High productivity
- Strong adaptability
- Saving materials and energy
- Economical
How we make Your Construction Easier
- Practical alternative to lap splicing
- Solve bar congestion problem
- No staggering of splice bars required
- Reduce steel Wastage
- Enable multiple re-use of formworks
General Specification:
- Couplers are individual market a allow full traceability of the material
- Tensile failure guaranteed to occur way from the joint
- No reduction of the ductility of the reinforcing bar
- No reduction of the nominal cross section area of the patent

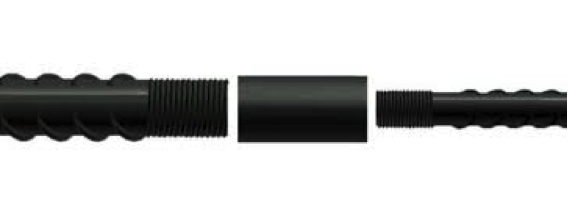

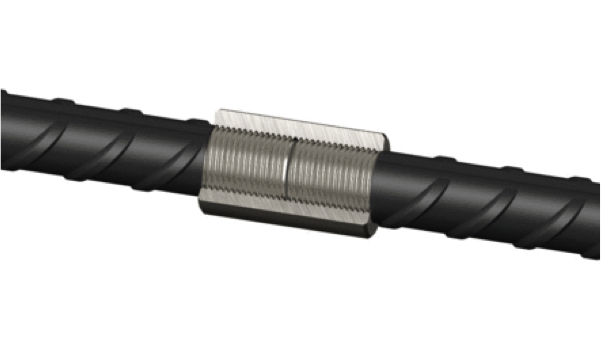

- Parallel thread system
SIZES
| SIZE | MATERIAL | OD | LENGTH | PITCH |
|---|---|---|---|---|
| M16 | EN8D | 28 | 40 | 2.5 |
| M20 | EN8D | 32 | 52 | 2.5 |
| M25 | EN8D | 40 | 62 | 3.0 |
| M32 | EN8D | 50 | 78 | 3.0 |
| M16-20 | EN8D | 32 | 47 | 2.5 |
| M20-25 | EN8D | 40 | 55 | 3.0 |

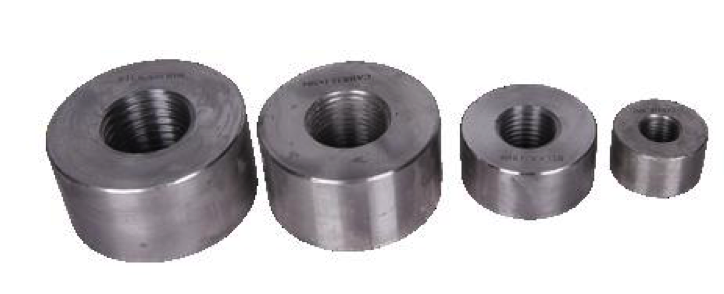

Cold Forged Rebar Coupler
| DIA | O.D | LENGTH | PITCH |
|---|---|---|---|
| 16 | 25 | 40 | 2.0 |
| 20 | 32 | 54 | 2.5 |
| 25 | 42 | 64 | 3.0 |
| 32 | 50 | 78 | 3.0 |
| 36 | 60 | 86 | 3.0 |
| 40 | 63 | 96 | 3.0 |
Request for a Quote
Fill out the below form and our experts will touch with you with in 24 hours.
Delivering Results with Solid Dependability
